JonathanWagenet

Projects

Tags mech sw

#

Joint Motor Calibration

Intuitive | 2022 - 2023 sw

Upgraded functional test software to meet new test and calibration requirements for DaVinci SP joint modules. Made a number of architectural improvements to the shared function testing library.

#

Patient Manipulator Backdrive Friction

Intuitive | 2022 sw

Completed production ready proof-of-concept integrating linear actuator and force sensor to measure manipulator backdrive friction.

#

Belt Tension Validation

Intuitive | 2021 sw

Developed automation suite for cyclical loading of drive belt to validate assembly performance and screen for premature failure on tension test stand. Wrote interface library for test stand serial communication.

#

Flex Joint Test Automation

Intuitive | 2018 - 2021 mechsw

Led team of 3 to develop test fixture for DaVinci Xi Flex joint to replace manual processes to burnish and test brake friction, measure bearing friction in loaded state, confirm encoder range of motion.

#

Motor Stator Test Fixture

Intuitive | 2020 - 2023 mech

Redesigned mechanical assembly of slotless motor stator tester for more precise mechanical alignment improve ease of assembly and servicing, and reduce GR&R and tester to tester measurement variance.

#

Set-up Joint Brake Test Fixture

Intuitive | 2019 - 2021 mechsw

Took NPI tester prototype and ironed out issues with brake installation and alignment. Prepared design and documentation to implement tester at supplier facility. Wrote test software and GUI in Matlab

Manufacturing Aids and Improvements

Intuitive | 2016-2022

  • Rolling cart for hands free installation of heavy arm at head height
  • Mechanical tweaks and preventative maintenance plan for pneumatic test fixture to mitigate mitigate common failure modes
  • Streamlined IQOQPQ and GR&R test plans
  • Many mechanical aids for part fixturing or ergonomic improvement of assembly tasks

rotary-3d-printer

Rotary 3D Printer

Univ. of the Pacific | 2016 mech

3D printer to print on a cylindrical surface.

autonomous-robot

2-Wheeled Autonomous Robot

Univ. of the Pacific | 2016 mechsw

Implementation of robotics hardware and algorithms.

solder-compositions

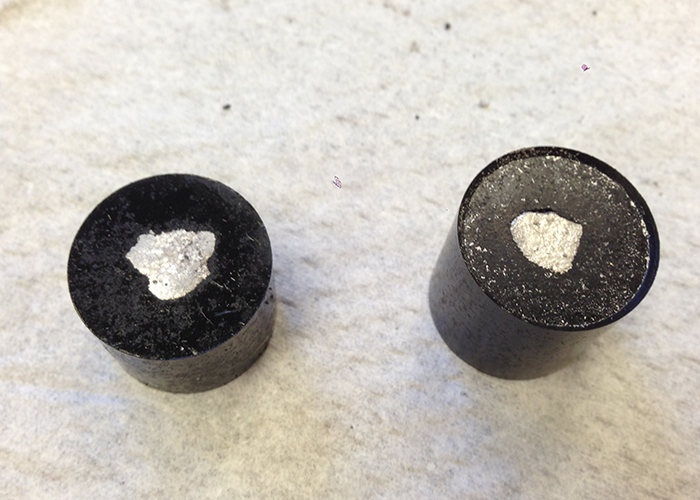

Comparison of Lead and Lead-free Solder Compositions

Univ. of the Pacific | 2015 mech

Evaluation of differences between lead and lead-free solders, including phase diagram construction, microstructure analysis, and shear testing.

sensor-packaging

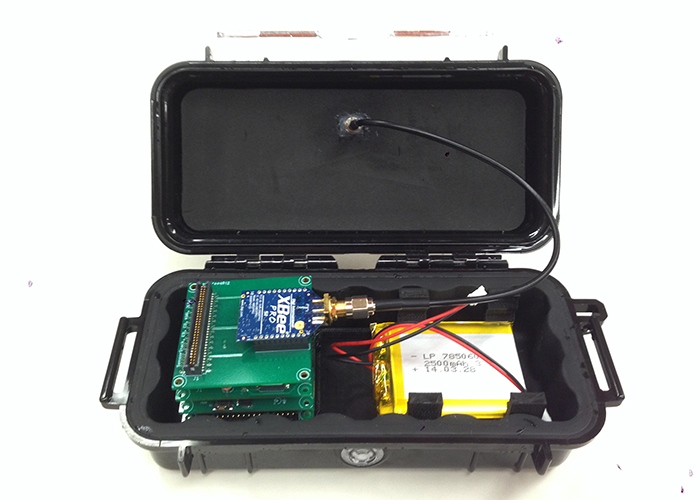

Sensor Packaging

Univ. of the Pacific | 2015 mech

Design a water tight enclosure for battery powered sensor nodes.

hvac-measurement

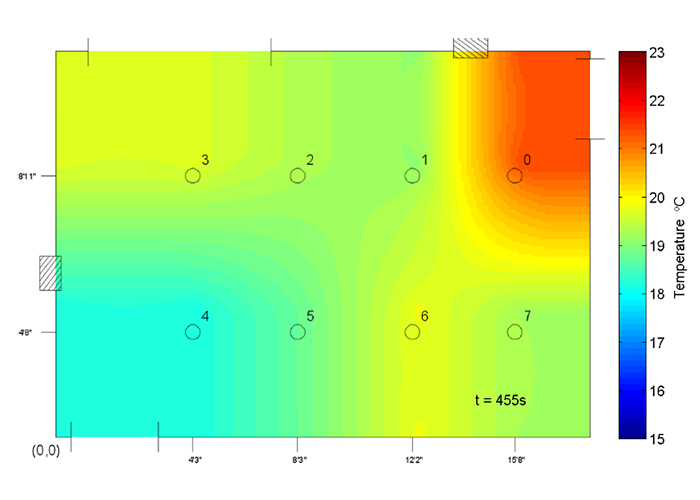

HVAC System Air Temperature Measurement

Univ. of the Pacific | 2015 mechsw

Temperature mapping of HVAC airflow in a system using a thermocouple array. Data evaluated for error and visualised with MatLab.

bidding-website

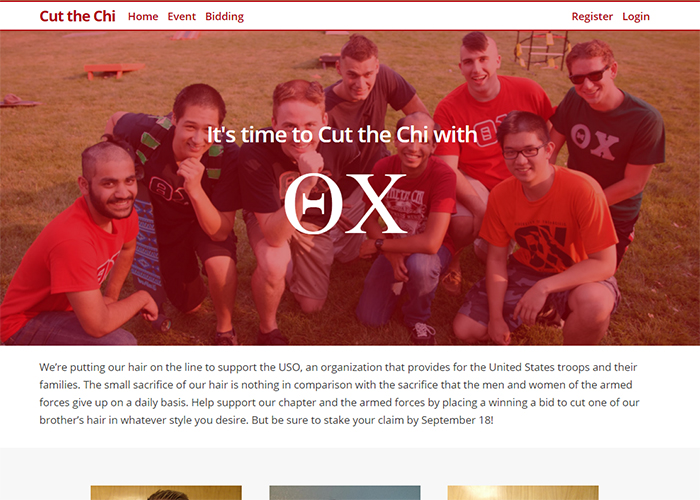

Cut the Chi Bidding Website

Univ. of the Pacific | 2014 sw

Auction website developed in Ruby on Rails for a philanthropy event.

Additional Projects

Univ. of the Pacific | 2012 - 2016

  • 4 Wheeled Robot Platform
  • GPS Tracker and GPX Output
  • Pressurized Tank Water Jet
  • Extensive 3D Printing Designs and Experience
